Steel Structure System

/

Steel Structure Accessories

/DFP555 Closed Type High Strength Metal Decking Sheet

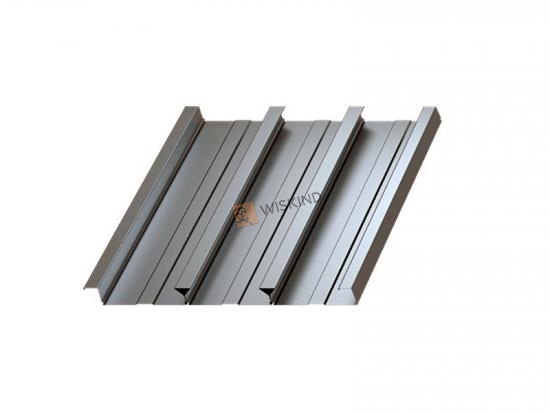

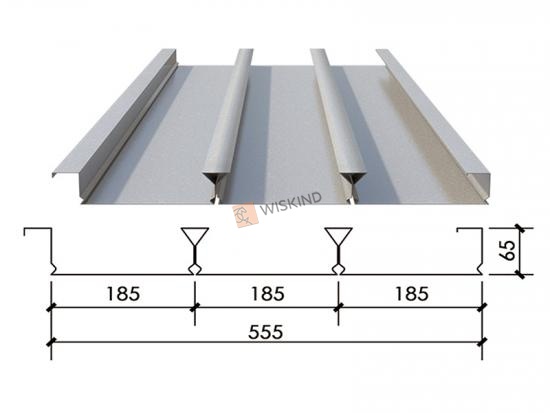

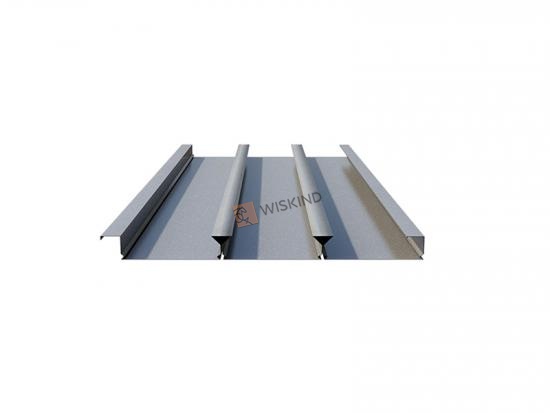

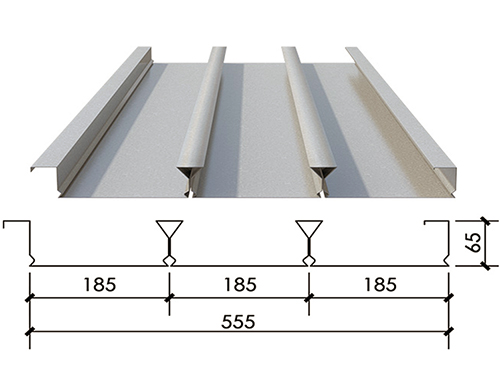

DFP555 Closed Type Metal Decking Sheet DFP555 Closed Type Metal Decking Sheet DFP555 Closed Type Metal Decking Sheet DFP555 Closed Type Metal Decking Sheet

DFP555 Closed Type High Strength Metal Decking Sheet

DFP555 Closed Type Metal Decking Sheet Series is developed by Wiskind with the help of Tianjin University.This floor decking system is connected to concrete par by shear force connecting piece.This combined floor decking series fully use the advantage of the two materials.The advantages of the floor decking system are light weight,high strength, big stiffness, easy construction and industrial production.

  • Payment:

    TT/LC

  • Product Origin:

    Shandong Province, China

  • Color:

    Customized as your request

  • MOQ:

    500 square meters

  • Shipping Port:

    Qingdao Port, China

  • Lead Time：

    30s-45s days after receiving your deposi

Product Categories

New Products

  • Product Details

1 Product Parameters：

Effective

Expanded Width
(mm)

Total Thickness
(mm)

Yield Strength
(N/nm2)

Moment of Inertia
(cm4/m)

Moment of Resistance(cm4/m)

Width(mm)

Wx1

Wx2

555

1045

0.8

250

91.55

50.58

20.39

555

1045

1

250

114.5

63.61

25.44

555

1045

1.2

250

137.5

75.97

30.48

2 Product Characteristics：

DFP555 Closed Type Metal Decking Sheet Product Details

Features: Pressed with galvanized steel sheet, load-bearing plate of multi-storey building, closed type, can process high-strength plate Q410.
Material width: 1000 /1060/1219
Material thickness: 0.8mm-1.5mm
Production speed: 350 m/h

Advantages:
■ Save a lot of temporary modules and modules support.
■ Reduce the use of concrete and permanent weight of the structure,which is of great significance to high rise building when in face of earthquake. Save a lot of labour in transportation,storage and installation. It is convenient to install cable of communication and electricity. The floor decking can also be installed with thermal and sound insulation material to improve the properly of the floor.
■ This floor decking can give full play to the tensile strength and ductility of steel and the compressive strength and stiffness of concrete.The combination of steel and concrete improves the entire buckling and partial buckling of steel.As a tensile steel, This floor decking can reduce the rebar quantity and installation.
■ This floor decking can serve as the platform, realizing three dimensional work and speeding up installation time.
3 Product Packaging And Delivery：
Product Packaging And Delivery

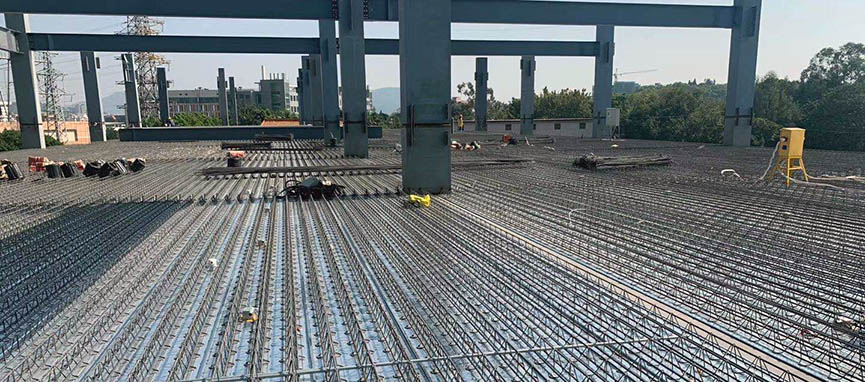

4 Product Installation Site：

Product Installation Site

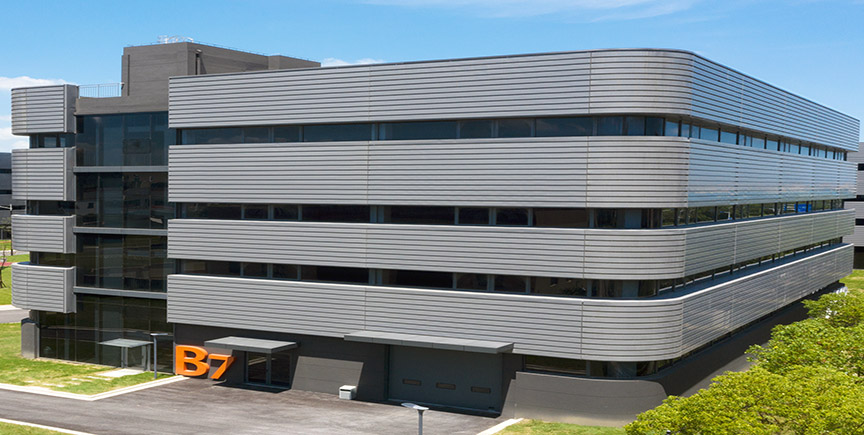

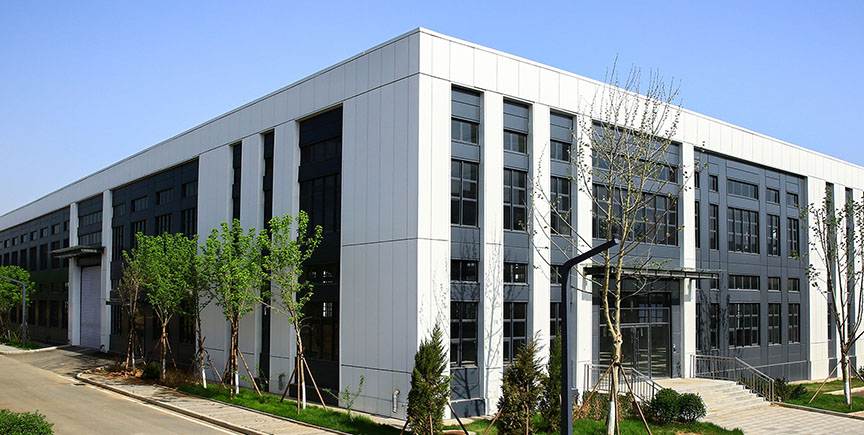

5 Product Project Cases：

DFP555 Closed Type Metal Decking Sheet Product Project Cases1

---DFP555 Closed Type Metal Decking Sheet Project Cases of Phoenix Mountain Industrial Park

DFP555 Closed Type Metal Decking Sheet Product Project Cases2

---DFP555 Closed Type Metal Decking Sheet Project Cases of Shanghai Lingang Fengjing Intelligent Manufacturing Park (Phase I)
