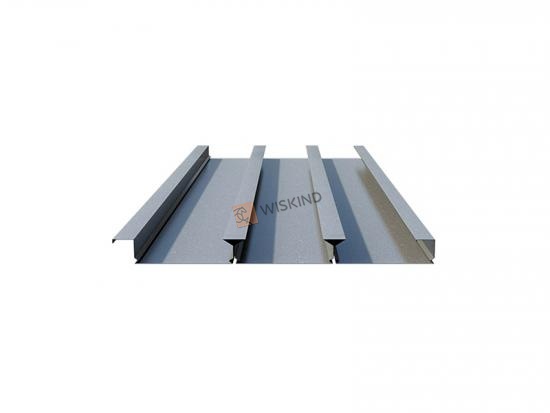

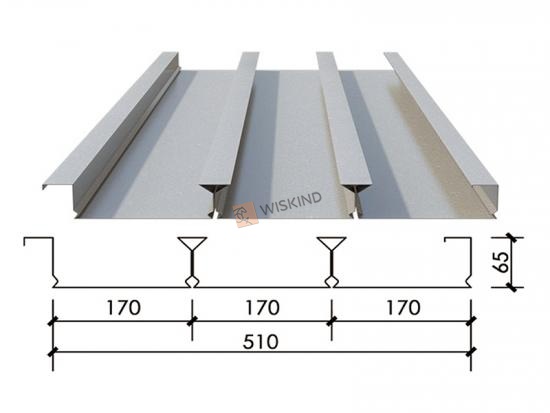

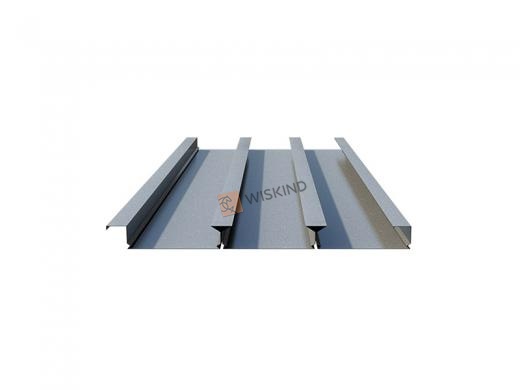

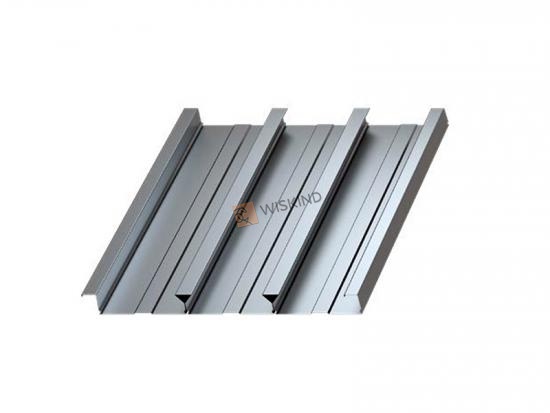

DFP510 Closed Type Hot Galvanized Steel Decking Sheet

As one of the close type,YXB65-170-510 press-formed steel plate that supports the floor concrete is called floor decking, also known as a floor bearing plate and a galvanized metal floor decking sheet. Usually made of hot-dip galvanized steel.It can be divided into open type and closed type. This type is the second generation closed floor deck.

  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    500 square meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    30s-45s days after receiving your deposi
  • Product Details

1 Product Parameters:

Effective

Expanded Width
(mm)

Total Thickness
(mm)

Yield Strength
(N/nm2)

Moment of Inertia
(cm4/m)

Moment of Resistance(cm4/m)

Width(mm)

Wx1

Wx2

510

1000

0.8

250

96.84

51.52

21.91

510

1000

1

250

121.1

64.41

27.4

510

1000

1.2

250

145.4

77.35

32.9

2 Product Characteristics:

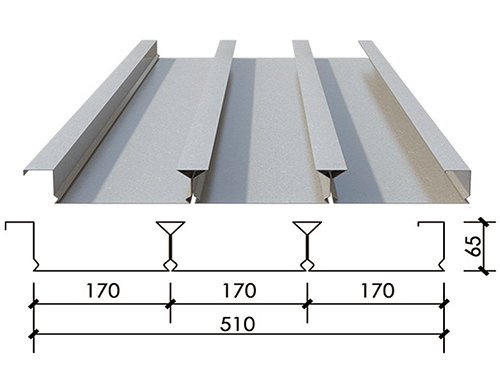

DFP510 Closed Type Galvanized Steel Decking Sheet Details

Floor decking is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, theaters, large supermarkets, logistics centers, Olympic venues Steel structure buildings such as stadiums.
To meet the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time, and can use multiple floors to lay profiled steel plates and layer-by-layer pouring concrete slabs for flow construction.
Closed Type Floor Decking Advantages
1.The bottom of the board is flat and the web is attached, and a variety of ceiling treatment methods can be provided according to the different functions and needs of various rooms.
2.The center of gravity of the section is about 16mm away from the bottom of the plate, which has a larger structural bearing capacity or a higher safety factor.
3.Decrease slab thickness and increase headroom.
4.The closed rib design, like the steel bars in the cast-in-place slab, can maximize the respective characteristics of steel and concrete.

3 Product Production Machines:

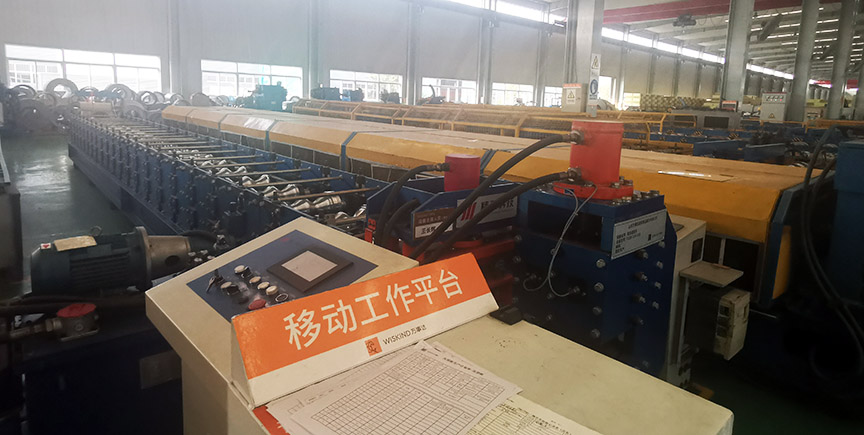

Product Production Machines

4 Product Packaging And Delivery:

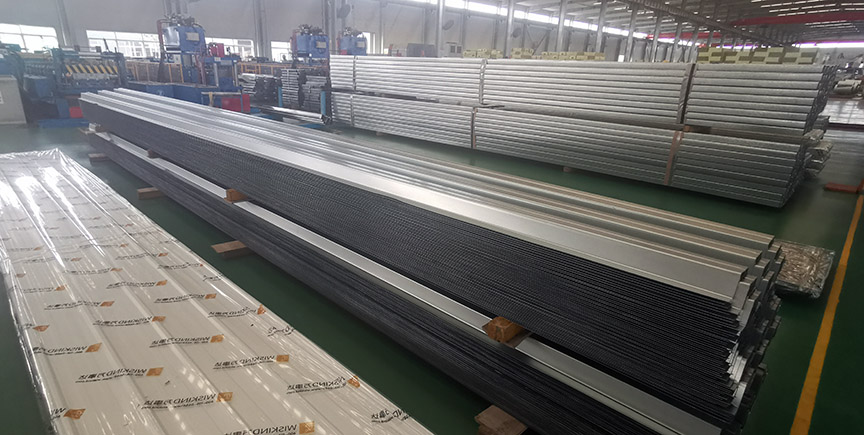

Product Packaging And Delivery

5 Product Project Cases:

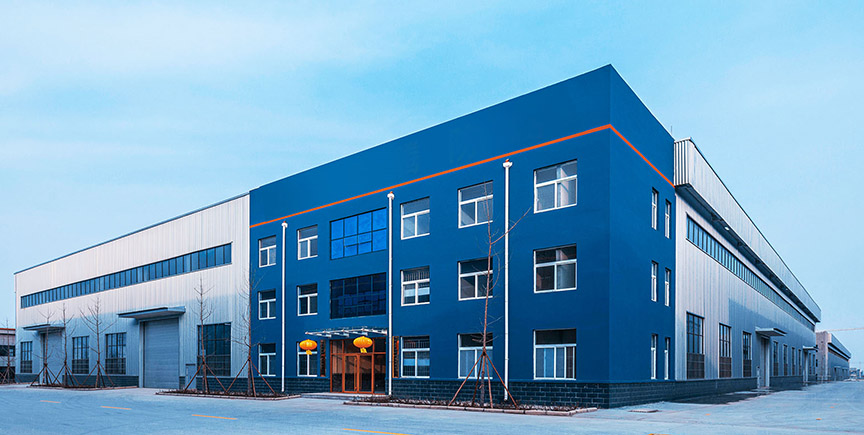

DFP510 Closed Type Galvanized Steel Decking Sheet Project Case

---DFP510 Closed Type Galvanized Steel Decking Sheet Project Cases of Donghong Bokai Auto Parts Industrial Park
