Pre Engineered Buildings for Automobile Manufacturing Center

Basic components of prefabricated steel industrial buildings.
Good material properties and high reliability. The steel is produced by the factory, with strict quality control, good material uniformity, and good plasticity and toughness, which is more in line with the ideal isotropic elastic-plastic material. Therefore, the currently adopted calculation theory can better reflect the actual working performance of the steel structure, high reliability.

  • Payment:

    TT/LC

  • Product Origin:

    Shandong Province, China

  • Color:

    Customized as your request

  • MOQ:

    500 square meters

  • Shipping Port:

    Qingdao Port, China

  • Lead Time：

    30s-45s days after receiving your deposi

Product Categories

New Products

  • Product Details

1 Product Parameters：

Main structure

Welded H Section or Hot rolled H section steel, Q235, Q345

Purlin

C Section or Z Section, Q235

Roof/Wall Cladding

Corrugated sheets,PU,EPS,Rock Wool,Fiber Glass sandwich panel can choose

Tie bar

Q235-Q355B Round Steel Tube

Brace

Q235-Q355B angle steel, round bar or steel pipe

Knee Brace

Q235-Q3555B Angle Steel

Roof Gutter

Color Steel Sheet

Rain spout

PVC Pipe

Door

Sliding Sandwich Panel Door or Metal rolling door

Windows

PVC/Plastic Steel/Aluminum Alloy Window

Connecting

High Strengthen Bolts, Normal bolts with nuts

Packing

As per your request, loaded into 40'GP/OT, 20'GP, 40'HQ

Drawing

We can make the design and quotation according to your detailed conditions or as per your drawing

2 The Supporting System-The Purlin System：

The Supporting System-The Purloin System

Cold-formed thin-walled purlins are the main sub-structural form of portal rigid frame structure systems with a column distance of less than 12 meters. The commonly used purlin spacing is 1.5m. High-strength hot-dip galvanized materials are used, which are continuously rolled and formed by the production line, with standardized pre-punching holes, C and Z section specifications, and are connected in a simply supported or continuous manner.

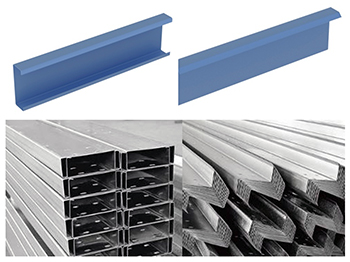

C Z Purlins's Details
· Z-shaped purlins are mostly used in the design of continuous purlins on house walls;
· C-type purlins are mostly used in walls, door and window openings, etc.

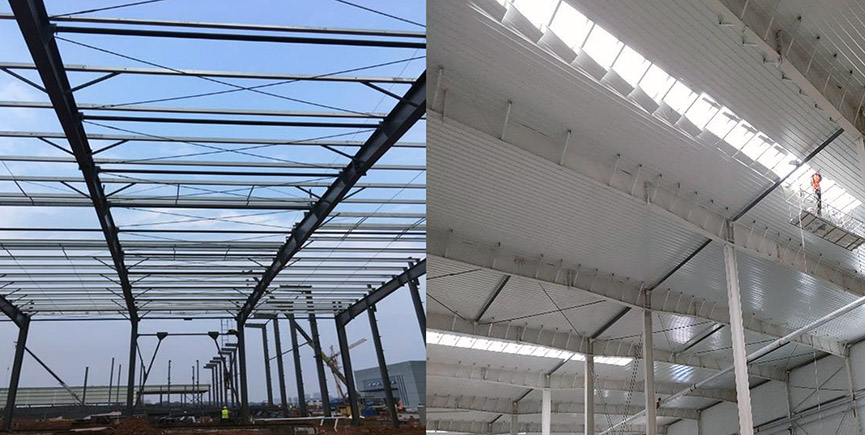

3 Steel Structure Installation Site：

Steel Structure Installation Site

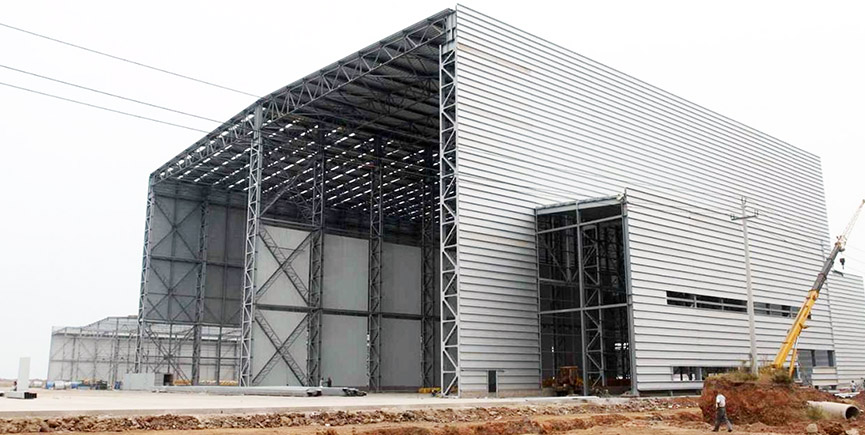

4 Automobile Manufacturing Center Project Cases：

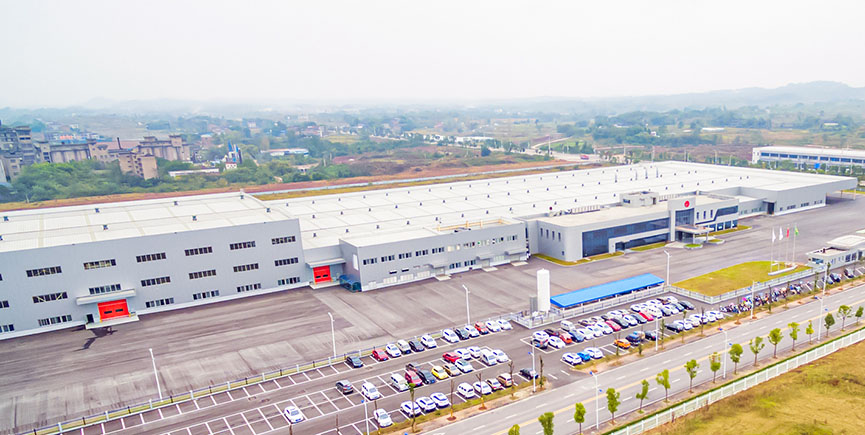

Automobile Manufacturing Center Project Cases1

--Automobile Manufacturing Center Project Cases Of Nanjing Kumho Tire

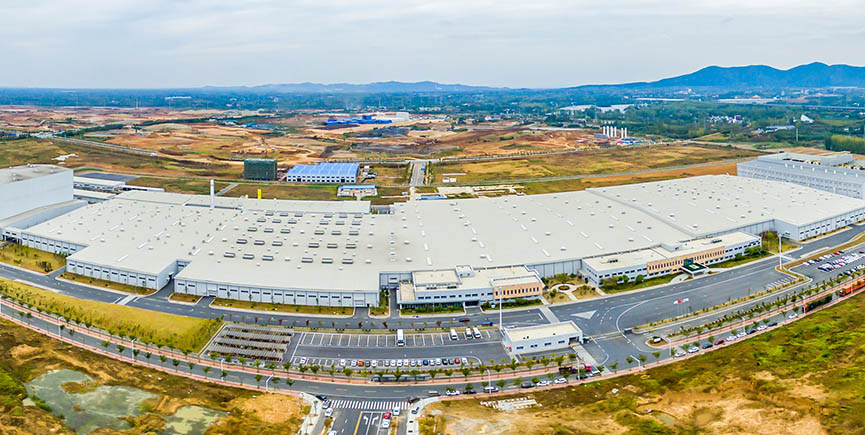

Automobile Manufacturing Center Project Cases2

--Automobile Manufacturing Center Project Cases Of Weichai Supporting Industrial Park

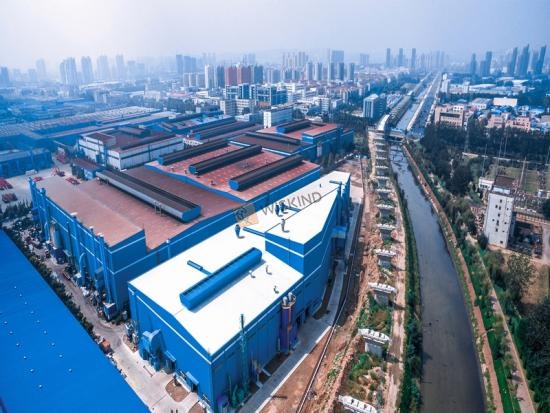

Automobile Manufacturing Center Project Cases3

--Automobile Manufacturing Center Project Cases Of Chongqing Chengyuan Automobile
