Payment:
TT/LCProduct Origin:
Shandong Province, ChinaColor:
Customized as your requestMOQ:
500 square metersShipping Port:
Qingdao Port, ChinaLead Time：
20-30s days after receiving your deposit1 Product Parameters：
|
Steel Outer Layer |
Common Thickness(mm) |
Specs 0.5-0.8(Coated Steel Panel) |
|
|
Inner Panel Specs 0.46-0.7(Coated Steel Panel) |
|
|
Common Length(mm) |
≤15000 |
|
|
Common Width(mm) |
920-1120 |
|
|
Coating |
PVDF/HDP/PE |
|
|
Insulation Core |
Core Material |
PU |
|
Density(kg/M3) |
PU:40±2 |
|
|
Thickness(mm) |
50-200 |
|
|
U value(w/m·k) |
PU:≤0.024 |
|
|
Fireproof Rating |
PU:Class B1 |
|
|
Process |
Joint |
2-sided joint-Male-Female Joint |
|
Production Process |
Continuous Production Process |
|
|
Surface Texture |
Flat/Flat Ribbing/Micro Ripple |
|
|
Center Trim Treatment |
Connection |
PU Filing+Decorative Cover |
|
Application |

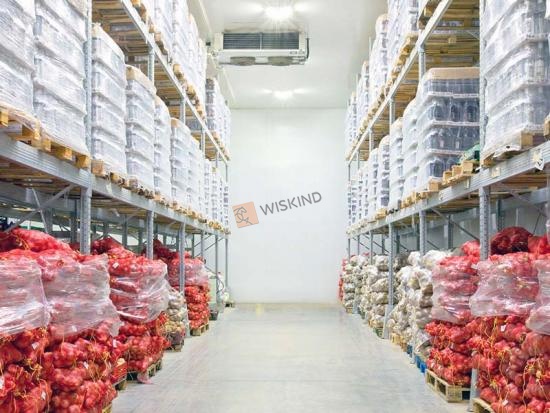

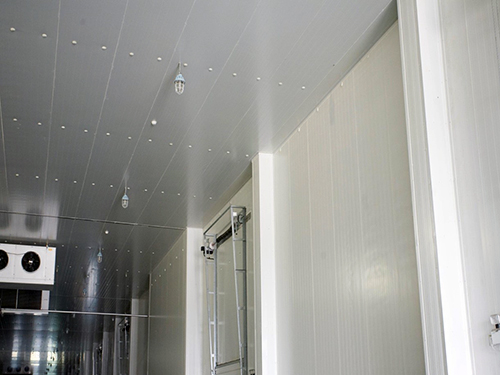

Polyurethane Sandwich Panels Freezer Rooms for Fruit & Vegetables Storage |
|
2 Product Characteristics：
1.Good insulating. It is made of ultra-long precision double-track control molding. Compared with the traditional hanging cotton retaining material, the insulation effect is better, the performance is more durable, the installation is convenient, the appearance is elegant, the polyurethane thermal conductivity is low (at 0.018- 0.024 w/ m·k), good insulation properties, excellent node design, to ensure that the sealing performance and insulation effect.
2.Low moisture absorption, excellent water resistance.
3. Good fireproof function.
4.Non-toxic, non-irritating, non-parasitic.
3 Product Project Cases：

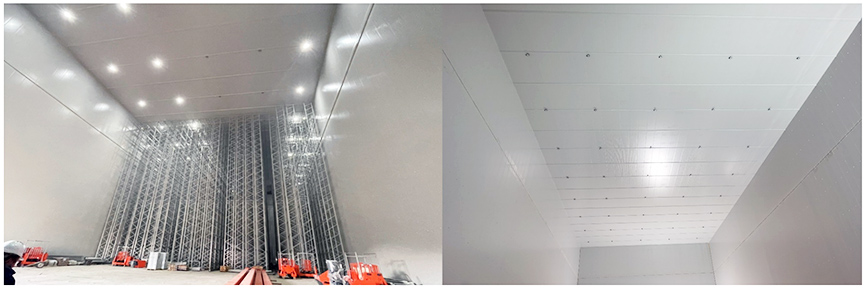

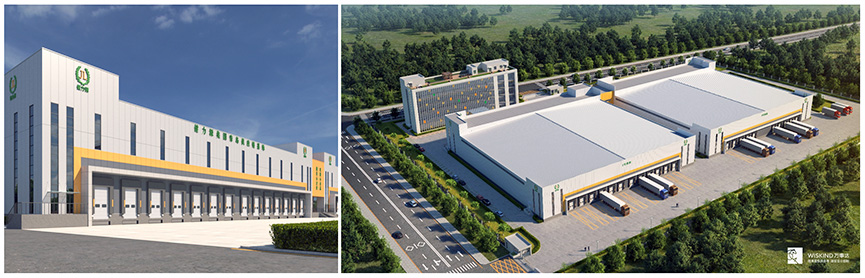

---Fruit and Vegetables Storage Project Cases of Jianliyuan (Qingdao) Cold Chain Supply Chain Base Project

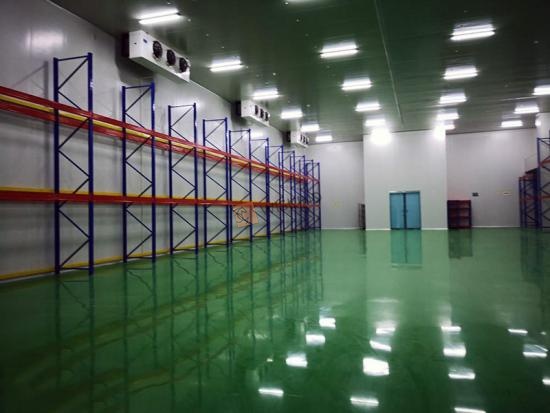

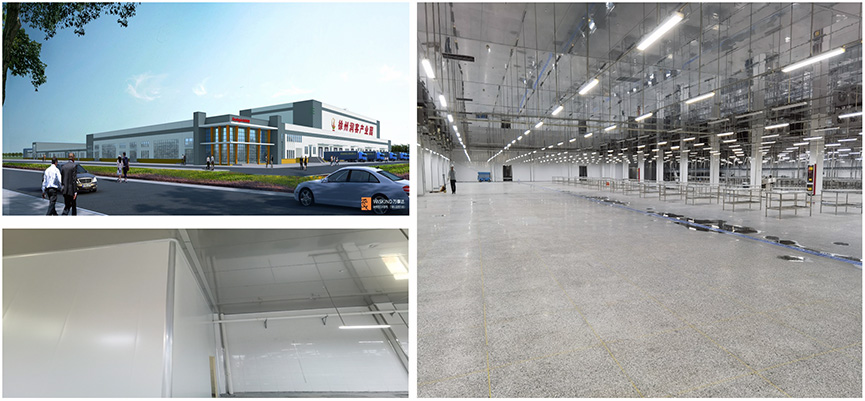

---Fruit and Vegetables Storage Project Cases of Xuzhou Runke Food Co., Ltd.

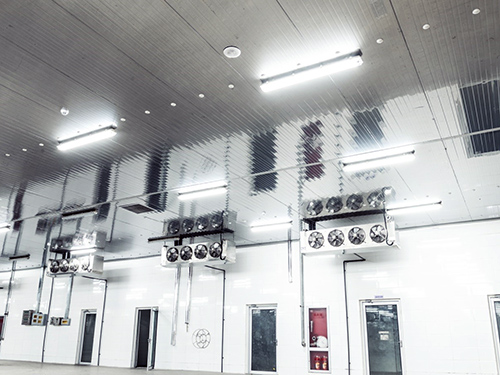

---Fruit and Vegetables Storage Project Cases of Zhongqing Great Cold Elevated Warehouse - Northeast Asia Aquatic Products Cold Chain Trading Platform Project

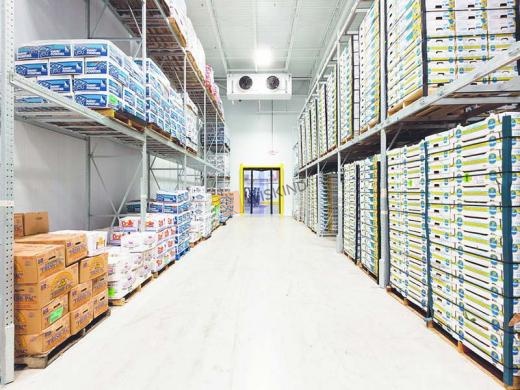

Wiskind PU/PUR/PIR Sandwich Panel for Walk-in Cold Room, is A new composite panel which takes light rigid polyurethane foams as the core materials and colorful steel plates or stainless steel plates as the surface material.
Wiskind PIR Sandwich Panel for Walk-in Cold Room or Freezer, which has B1 fireproof and excellent waterproof effect. High percentage of close area ≥90% and low moisture absorption ≤3%. Low thermal conductivity≤0.020. It has a high-efficient thermal insulation effect. The best choice for insulation solutions for your cold storage cladding systems.
The cold storage is mainly composed of a refrigeration system, a thermal insulation system, and a control system. Among them, the cold storage enclosure system is the main component of the cold storage, and the main product is the energy-saving cold storage panels. The quality of its materials determines the safety of cold storage buildings and the effect of thermal insulation and energy saving. MasterCard has been focusing on the business of energy-saving thermal insulation materials for cold storage enclosure systems for many years, and provides customers with complete solutions from processing to warehousing through the new generation of polyurethane PIR pentane B1 core material formulation and scientific node design.

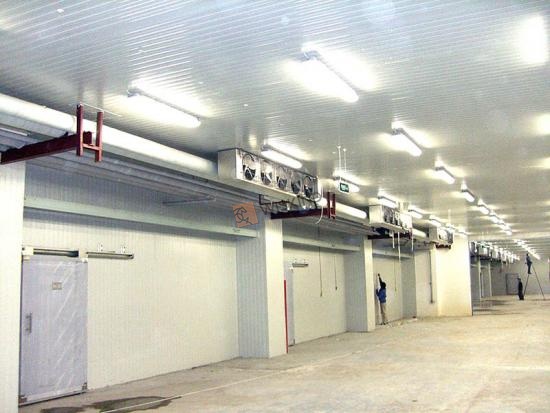

Puf Roof Panels for Cold Storage Room Ceiling System, adopt the new generation PU PIR Pentane-blown B1 foam as the rigid core material, which boasts excellent heat insulation and fireproof performances. Ultra-high temperature stability and fire rating, zero Freon emissions, energy saving and eco-friendly, thus able to be widely used in industrial building and cold storage projects.
