Metal Cladding System

/

Corrugated Steel Sheets

/

Corrugated Steel Roofing Sheets

/840 High Strength Wall Panel Corrugated Steel Wall Sheets
Steel Wall Board Steel Wall Board Steel Wall Board Steel Wall Board

840 High Strength Wall Panel Corrugated Steel Wall Sheets

Wiskind 840 corrugated steel board is more widely used for roofing, saving costs compared to the 820. In addition to making roof panels, you can also make wall panels. It can be used as a high-strength board.

  • Payment:

    TT/LC

  • Product Origin:

    Shandong Province, China

  • Color:

    Customized as your request

  • MOQ:

    1000 Square Meters

  • Shipping Port:

    Qingdao Port, China

  • Lead Time：

    20-30s days after receiving your deposit

Product Categories

New Products

  • Product Details

840 High Strength Wall Panel Corrugated Steel Wall Sheets



Product Parameters:

Product Name840

840 High Strength Wall Panel Corrugated Steel Wall Sheets

Profiled Steel Sheets Type



YX25-210-840

Effective Width

840mm

Feeding Width

1000mm

Crest Height

25mm

Panel Thickness

0.5-0.6mm

Section Inertia

4.44-5.386cm⁴/m

Section Resistance

6.98-8.31cm³/m

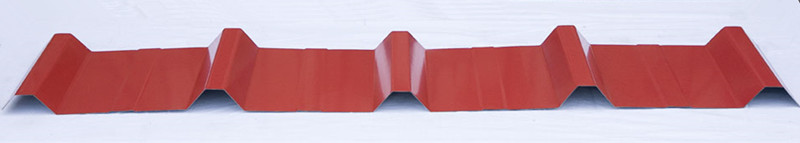

Corrugated Steel Board



Product Advantages:

1.Standard wall panels commonly used in industrial buildings.

2.It is directly connected to the secondary structure by screws and has strong wind resistance.

3.The 25mm wave height and trough design make the wall panel have a stronger three-dimensional effect and better appearance.

4.High standard, high strength fasteners provide excellent weather tightness.

5.High effective utilization, easy installation, economical and practical.

Hot Tags: Corrugated Steel Board Prefabricated Steel Wall Board Prefabricated Roof Panel Steel Prefabricated Roofing Systems Prefabricated Steel Board for Wall
